Cargo


A cargo item is any object that can be loaded into one of Cargo Optimizer's containers. Cargo objects must be cubic shapes. Examples of cubic shapes are boxes, cartons, or even whole pallets..

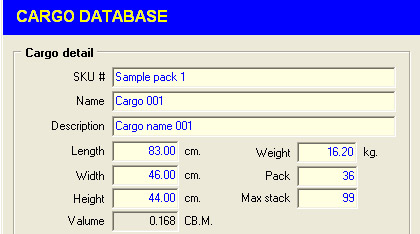

All cargo items have a mandatory set of base data (see example below).

SKU# is a user definable unique code for each cargo.
Name is a user definable name for each cargo.
Description is a user definable description for each cargo item.

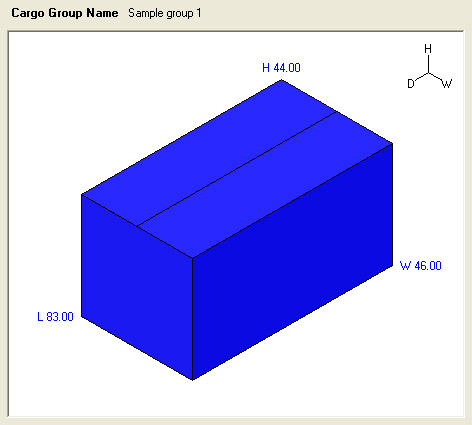

Length is defined as dimension of cargo from back to front.
Width is defined as dimension of cargo from left to right.
Height is defined as dimension of cargo from bottom to top.
Weight is defined as weight of cargo.
Pack is number of products per cargo (carton).
Max Stack is the maximum number of cargo that can be stacted on top of each
Orientatation is the six different ways in which a cargo can be loaded.

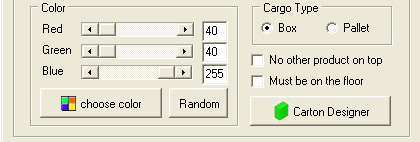

Color, Color is used for easier recognition. Color is created by mixing from the range of 3 standard RGB colors or by choosing from the color dialog option or selected randomly.
Cargo type, type of cargo between Box and Pallet.
No other product on top is use to allow, or not allow other cargo to be placed on top of this cargo.
Must be on the floor allows the user to select that the specific cargo will only be placed on the floor.

Software come with Carton Designer module to design carton from products.
