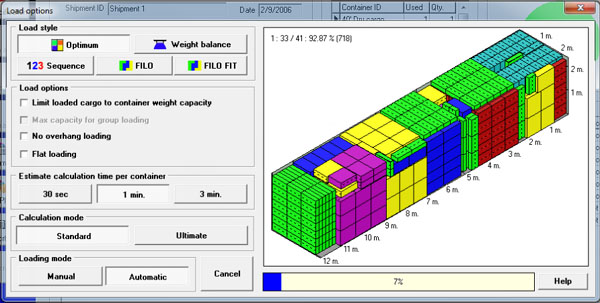

Load Options




Cargo Optimizer has 7 componants as load options.

1. Load style

This section is used to define style of loading (only effects automatic mode).
Optimum use all sequences in loading process (most efficence loading).
Weight balance
try to load with weight distribution to all floor, make balance on left and right side.
Sequence
use loading in sequences data entered in Input Specification.
F.I.L.O. (First In Last Out)
use loading in sequences data entered in Input Specification and load in depth of container direction.
F.I.L.O. FIT (First In Last Out, )
Packed more than normal F.I.L.O.

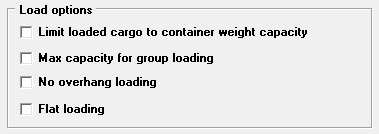

2. Load options

This section is used to define cargo placement style and weight limit loading (only effects automatic mode).

limit loaded cargo to container weight capacity
use to limit loaded cargo quantity to container weight capacity.
Max quantity for group loading use to calculate for maximum capacity of group cargo. more details
No overhang loading Allow/not allow overhang loading (floating cargo).
Flat loading load cargos in flat style.


3. Estimate calculation time per container




This section is used to define maximum calculation time (only effects automatic mode).


4. Progress bar and show picture option





This progress bar use to show the calculation status of the entire container or shipment (only show on automatic mode).
Help use to open help file of load options.


5. Calculation mode



It used to choose calculation mode between Standard or Ultimate mode.

Ultimate mode is special mode by push all loaded cargo inside and recalculate on new available space.
It can make more loade efficiency in some case.

With Ultimate mode, software will not use
- cargo's max stack
- No other product on top of each cargo

Ultimate mode can use with "Optimum" style only and can not use with "No overhang loading" option.

*** Ultimate mode will use more calculation time ***

6. Loading Mode and LOAD button




is used to define loading mode between Manual mode (Loading by user) or Automatic mode (Loading by computer).
LOAD
button use to to start loading calculation.

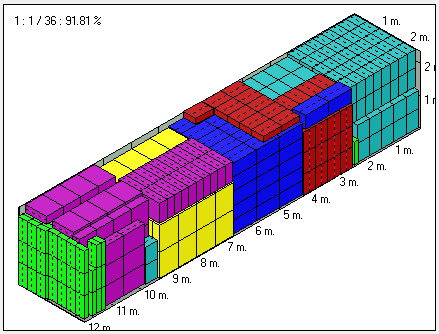

7. Loaded container preview


Use to show picture of maximum efficiency on calculation process.
Top left is Container number : maximum process / calculating process : maximum loaded efficiency
